38kV C-GIS Switchgear

Name: "38kV C-GIS Switchgear"
Rating: 5 (428 reviews)

SKU: 2875289292

Model: FP-C-GIS

Product Details

Product Specification

Type	C-GIS VCB Switchgear C-GIS Load Break Switch Unit C-GIS Fuse-Switch Unit C-GIS Feeder Switchgear C-GIS Metering Unit C-GIS Bus Tie / Sectionalizing Unit C-GIS Transformer Feeder	Model	FP-C-GIS
Params	- Rated voltage: 38 kV; rated frequency: 60 Hz - Rated current: 2500 A – 4000 A - Short-time withstand current: 40 kA (4 s); peak withstand current: 100 kA - Lightning impulse withstand: 150 kV; power frequency withstand: 80 kV - Insulation medium: SF₆ / N₂ gas mixture; enclosure protection: IP6X	Material	- High-strength stainless steel welded gas enclosure - High-current tin-plated high-purity copper busbars with thermal optimization - High-temperature epoxy resin insulation components - High-capacity SF₆ interrupters - Reinforced cold-rolled steel structural frame
Applicable Industry	High-capacity substations, data center main incoming feeders, large industrial primary substations, renewable energy collection stations, urban trunk distribution substations

Feature

- High-current carrying capacity for 4000 A bulk distribution applications - Eco-friendly mixed gas insulation with lower global warming potential - Maintains compact footprint despite high current rating - Fully insulated and sealed construction for reliable operation - Optional online monitoring for gas density and conductor temperature

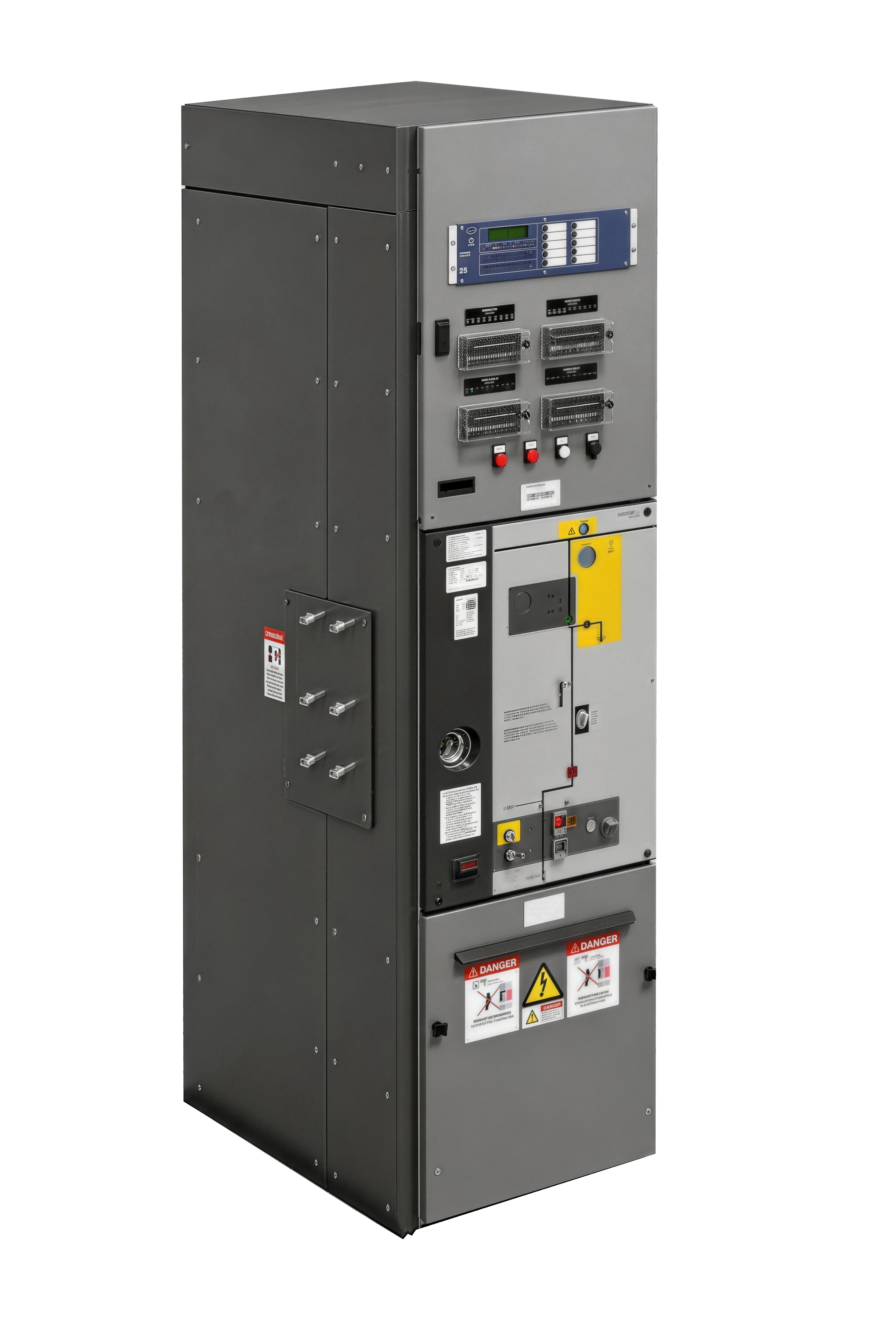

C-GIS
